Fixabolt

M12 Countersunk Washer Stainless Steel (A1) (NF E 27-619)

M12 Countersunk Washer Stainless Steel (A1) (NF E 27-619)

£0.82 Ex. VAT
£0.98 GBP Inc. VAT
£0.82 Ex. VAT
£0.98 Inc. VAT
Sale Currently out of stock
  • For use with thread size: M12 (12mm)
  • Internal diameter (ID): 14mm
  • External diameter (OD): 32mm
  • Countersunk diameter (M): 24mm
  • Washer height (T): 6.5mm
  • Manufacturing standard: NF E 27-619
  • Orders placed before 2pm sent out same day

Guaranteed Safe & Secure Checkout

Shipping & Returns

Orders placed before 2pm Monday to Friday will be despatched the same day and you should receive your order within 2 to 5 working business days depending upon the courier service chosen. Weekend deliveries are not included in the estimate, but we often deliver on weekends too.

We deliver to England, Wales and the Scotland. For deliveries outside these areas, an extra cost may be incurred.

Free Delivery*

Free delivery is for all orders over £50 (Exc. VAT) up to a maximum weight of 28kg and only to England, Wales and the Scottish mainland.

*Tools and Accessories are currently excluded from free delivery offers.

Returns & Refunds

All purchases made through www.fixabolt.co.uk are subject to a 30 day money-back guarantee but must be in its original and undamaged packaging, the original items, and in a resalable condition. All refunds must be accompanied by the original receipt/invoice and you, the customer, are liable for the return delivery charges. Fixabolt is not liable for the delivery costs as we are selling a specialist item for a very specific and niche purpose, so it is assumed you will know exactly what you are looking for. Please contact us by email if you have any further queries, at info@fixabolt.co.uk

Trade Accounts

Become a trade account member and enjoy the exclusivity of a dedicated account manager and a generous 10% discount on all orders.

You'll also be able to instantly view and re-order previous orders.

Maximise efficiency with personalised support while enjoying significant savings that directly impact your bottom line.

Join us now for a seamless and cost-effective partnership tailored to meet your unique needs.

Sign up now

View full details

M12 Countersunk Washer Stainless Steel (A1) - NF E 27-619

  • For use with thread size: M12 (12mm)
  • Internal diameter (ID): 14mm
  • External diameter (OD): 32mm
  • Countersunk diameter (M): 24mm
  • Washer height (T): 6.5mm
  • Countersunk angle: 90 degrees
  • Material: A1 (303) stainless steel
  • Finish: Natural
  • Manufacturing standard: NF E 27-619
  • Metric or imperial: Metric
  • Fixabolt SKU: CSWA-M12-A1

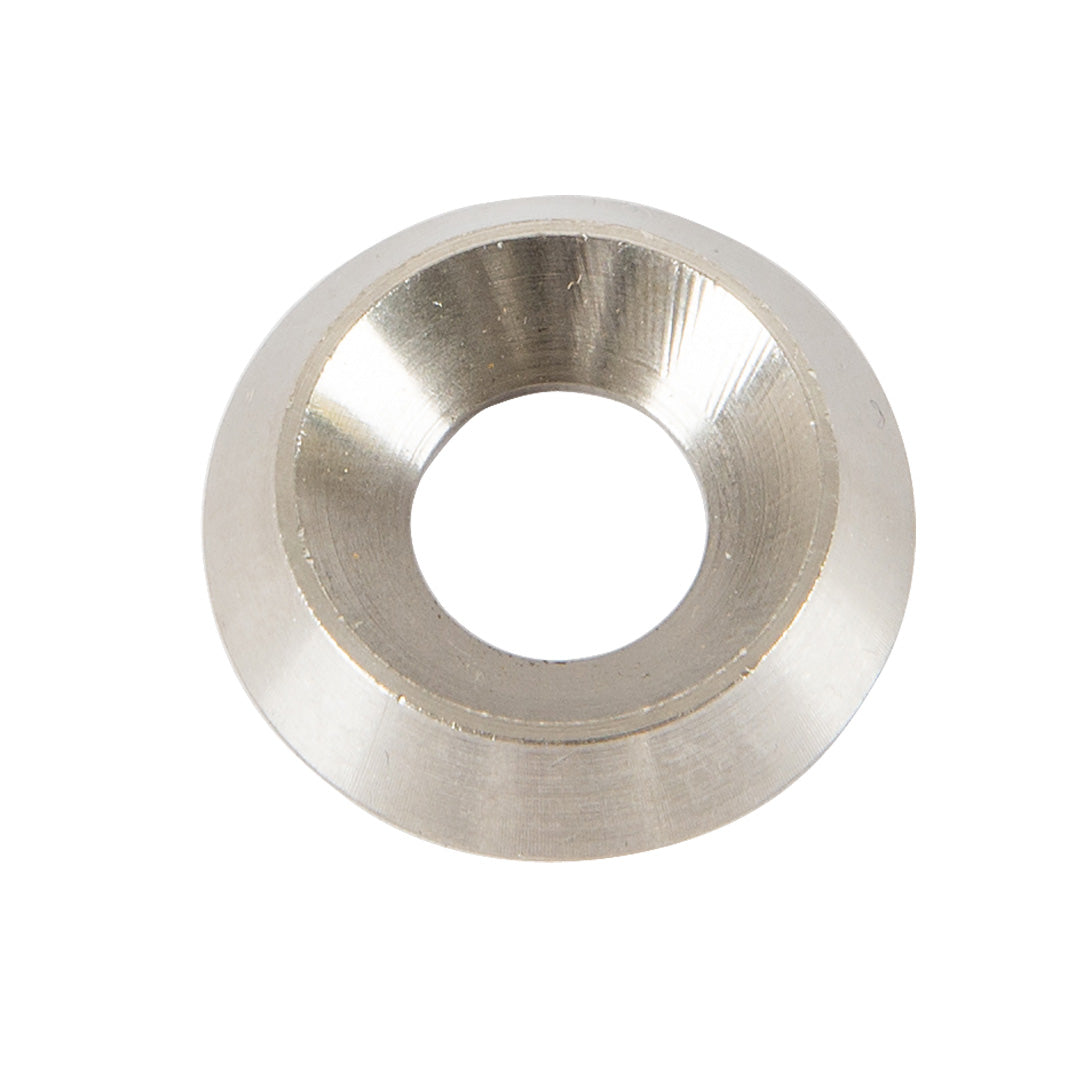

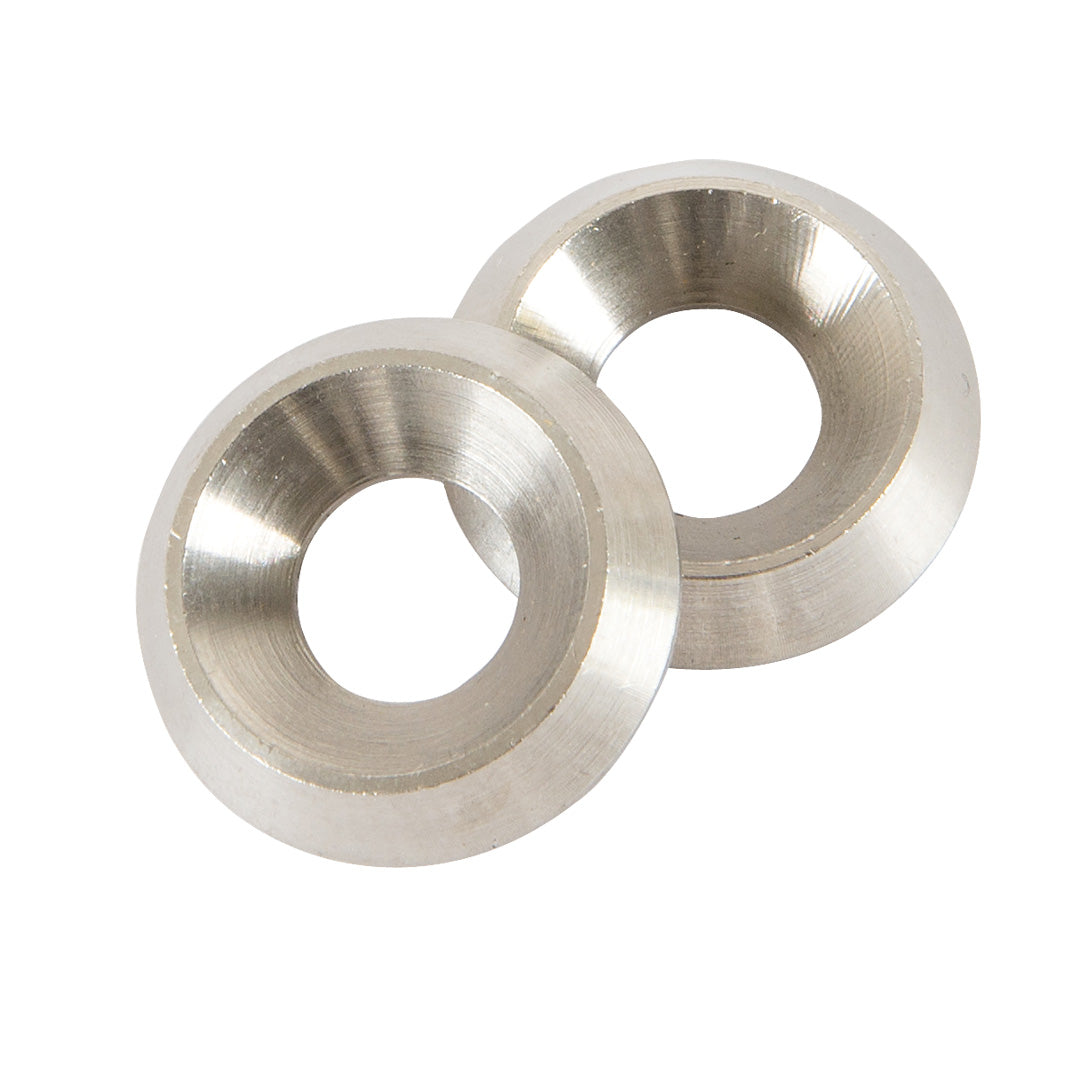

This M12 solid countersunk cup washer is a machined "finishing" washer designed to take standard 90-degree M12 countersunk-head fasteners, such as machine screws, wood screws, self-tapping screws and security screws, and present a neat, professional bearing surface on flat or uneven materials. The 14mm internal diameter gives a proper M12 clearance, while the 32mm outside diameter and solid 6.5mm height help spread the clamping load and protect the workpiece from damage when bolts or screws are tightened down hard on heavier sections.

This solid stainless steel M12 cup washer is manufactured to NF E 27-619, the recognised standard for solid finishing / countersunk washers for 90-degree countersunk head screws. The 24mm countersunk diameter is matched to typical M12 countersunk screw head dimensions, allowing the head to sit snugly into the washer and giving a flush, tidy appearance around the fixing point. Being machined from A1 (303) stainless steel, it offers reliable corrosion resistance for most indoor and many outdoor applications, along with excellent machinability and a clean stainless finish. For particularly aggressive or marine environments, A4 (316) stainless is usually preferred, but A1 is more than suitable for the majority of general engineering, construction and playground-related fixings when installed correctly.

Tradespeople commonly use this type of countersunk washer anywhere a visible fixing on larger or higher-load components needs to look smart as well as hold securely: structural and architectural steelwork, heavy benching and seating, timber frames, playground construction, plant and machinery guards, electrical and control panels, and general engineering assemblies. In playground and other public-space installations, these washers are often combined with tamper-resistant countersunk screws and appropriate nut caps as part of a complete fixing detail. Pair these washers with quality M12 stainless countersunk-head fasteners to achieve a neat and tidy fixing.

View our full range of stainless steel countersunk washers.
