M10 Coach Bolts

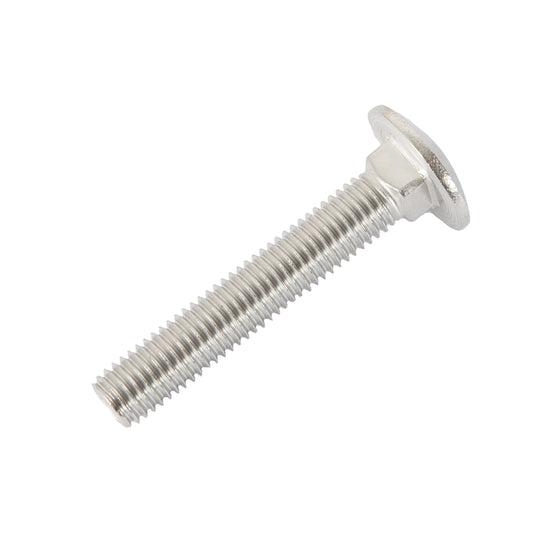

M10 coach bolts, also called M10 carriage bolts, are a metric bolt with a thread diameter of 10mm.

When choosing the right M10 coach bolt (DIN 603) for a specific application, it is important to consider factors such as the required level of corrosion resistance, strength and load-bearing capacity. You should also ensure that the 10mm coach bolt is compatible with the other components that will be used in the assembly by searching for the DIN numbers.

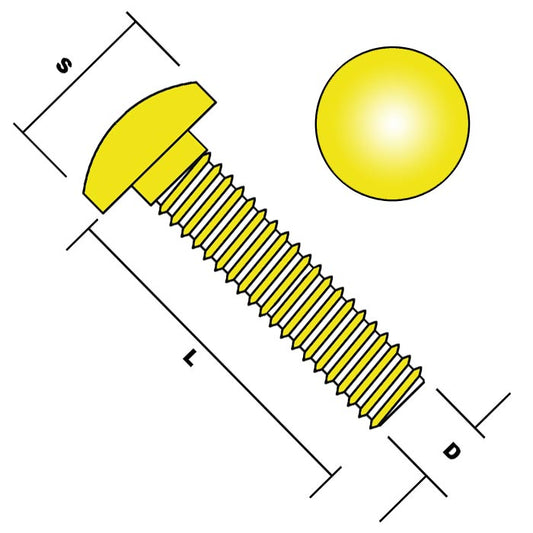

M10 Coach Bolt Dimensions

  • Thread Diameter: 10mm
  • Thread Pitch: 1.5mm
  • Head Diameter: 24.65mm (max)
  • Head Height: 5.38mm
  • Specification: DIN 603

Stainless Steel M10 Coach Bolts

At Fixabolt, we supply a full range of 10mm coach bolts in stainless steel for various trade and DIY uses.

Stainless steel M10 coach bolts are a popular option due to their corrosion resistance and durability. They are commonly used in construction and automotive applications, as well as in outdoor environments where exposure to air moisture and other corrosive elements may be a concern.

10mm coach bolts can be fastened with an M10 nut, which can also be found on our website.

You can browse our full range of stainless steel coach bolts here.

Please Note: M10 coach bolts DIN 603 may come fully threaded or partially threaded depending on source of manufacture.

Not what you were looking for? Find the similar named M10 coach screws here.
