5.5 x 100mm Wing Drill Screws Countersunk TEK 5 (X100)
5.5 x 100mm Wing Drill Screws Countersunk TEK 5 (X100)
- Wing Drill Screw: 5.5 x 100mm
- Heavy Section Steel: 4.0 - 12.0mm
- Thread: Fine Thread (TEK 5)
- Head: Countersunk with Nibs
- Drive: Phillips No. 3
- Coating: 500Hr EvoShield
- Orders placed before 2pm sent out same day
FIXED RIGHT. PRICED RIGHT.
Couldn't load pickup availability
Guaranteed Safe & Secure Checkout
![](https://cdn.shopify.com/s/files/1/0653/6885/0678/files/payment-options.jpg?v=1664458909")
Shipping & Returns
Shipping & Returns
Orders placed before 2pm Monday to Friday will be despatched the same day and you should receive your order within 2 to 5 working business days depending upon the courier service chosen. Weekend deliveries are not included in the estimate, but we often deliver on weekends too.
We deliver to England, Wales and the Scotland. For deliveries outside these areas, an extra cost may be incurred.
Free Delivery*
Free delivery is for all orders over £50 (Exc. VAT) up to a maximum weight of 28kg and only to England, Wales and the Scottish mainland.
*Tools and Accessories are currently excluded from free delivery offers.
Returns & Refunds
All purchases made through www.fixabolt.co.uk are subject to a 30 day money-back guarantee but must be in its original and undamaged packaging, the original items, and in a resalable condition. All refunds must be accompanied by the original receipt/invoice and you, the customer, are liable for the return delivery charges. Fixabolt is not liable for the delivery costs as we are selling a specialist item for a very specific and niche purpose, so it is assumed you will know exactly what you are looking for. Please contact us by email if you have any further queries, at info@fixabolt.co.uk
Trade Accounts
Trade Accounts
Become a trade account member and enjoy the exclusivity of a dedicated account manager and a generous 10% discount on all orders.
You'll also be able to instantly view and re-order previous orders.
Maximise efficiency with personalised support while enjoying significant savings that directly impact your bottom line.
Join us now for a seamless and cost-effective partnership tailored to meet your unique needs.

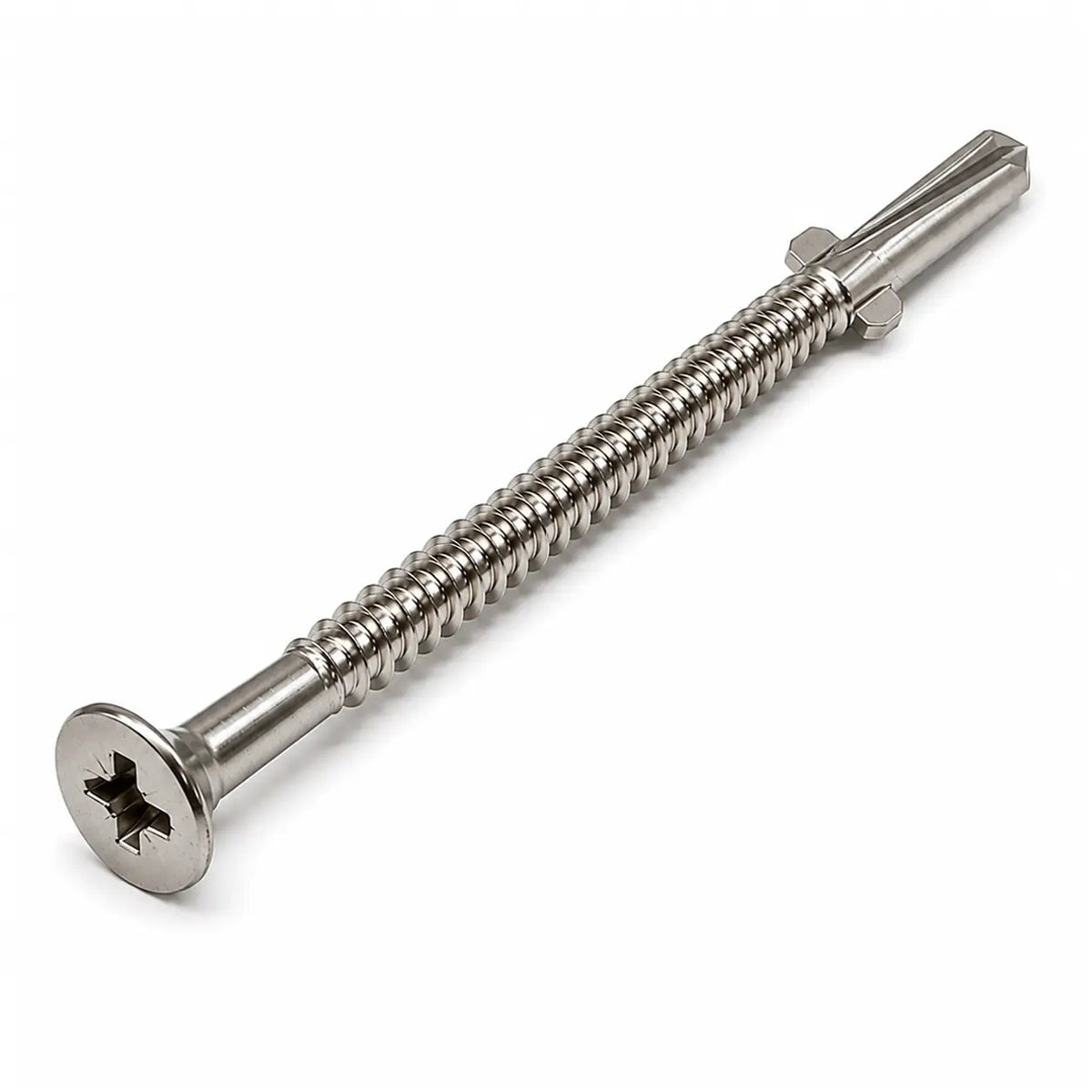

5.5 x 100mm Heavy Section Wing Drill Screws for Timber to Steel
- Fixabolt SKU: FB-TSTF5.5-100-5
- Box Quantity: 100 screws
- Application: Timber or composites to steel
- Head Style: Countersunk with countersinking nibs
- Drive: Phillips No. 3
- Thread Form: Fine thread (TEK 5)
- Material: Carbon steel
- Material Grade: SAE C1022 / AISI C1022
- Coating: 500Hr EvoShield
- Steel Drilling Capacity: 4.0-12.0mm
- Timber Capacity: 40.0-65.0mm
- Effective Thread Length: 65mm
- Recommended Drill Speed: 1500-2500 RPM
These 5.5 x 100mm countersunk wing drill screws are designed for fixing timber, boards and suitable composite materials to steel. The integral wings ream a clearance hole through the timber before breaking away on contact with the steel, allowing the drill point and thread to engage the steel section correctly.
This TEK 5 version is intended for heavier steel sections from 4.0mm to 12.0mm, making it easy to select the appropriate range for timber-to-steel work.
A sharp drill point and precision-formed concave fluting aid drilling and chip removal. Countersinking nibs beneath the head help provide a flush finish in suitable timber, while the thread form is matched to the TEK 5 drilling range for secure fixing into steel.
Often searched for as timber-to-steel screws, wing Tek screws or self-drilling timber screws, they provide a practical single-fixing solution for suitable timber and composite-to-steel applications.
